INTELECT MOBILE 2 Ultrason – Chattanooga

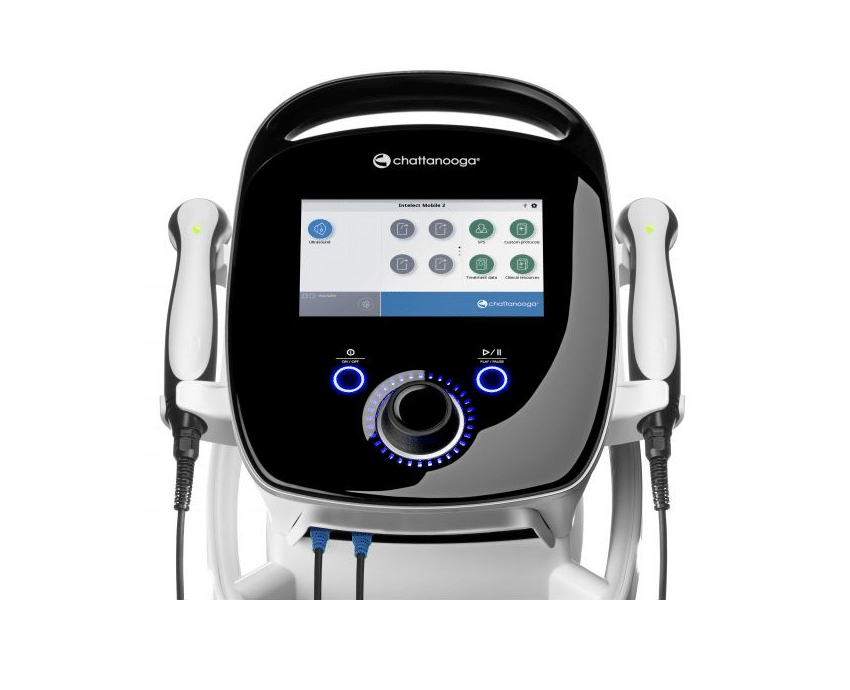

The Intelect® Mobile 2 Ultrasound from Chattanooga is a cutting-edge medical device designed for healthcare professionals seeking effective ultrasound treatments.

Versatile, ergonomic, and usable with or without an optional table, it is suitable for both office and home use.

You can select the ultrasound frequency (1 or 3 MHz), in pulsed or continuous cycles (10%, 20%, 50%, and 100%). The device also features a list of built-in protocols allowing for multiple treatment options, easily accessible from the user interface.

Skin (patient) contact detection can be monitored audibly or visually using the LED located on the back of the applicator. The treatment time indicator stops when the head loses contact with the patient, thus counting the effective treatment time for the session. Two applicators can be connected to the Intelect® Mobile 2.

Therapeutic Indications

• Relief from muscle, joint, and ligament pain
• Tendinopathies (Achilles, patellar, rotator cuff, etc.)
• Sprains
• Muscle tears
• Adhesive capsulitis

It provides analgesic and anti-inflammatory effects and promotes tissue healing.

Technical Specifications

• Frequencies: 1 MHz or 3 MHz
• Modes: Pulsed (10%, 20%, 50%), or Continuous (100%)
• Pulse Frequency: 16, 48, or 100 Hz

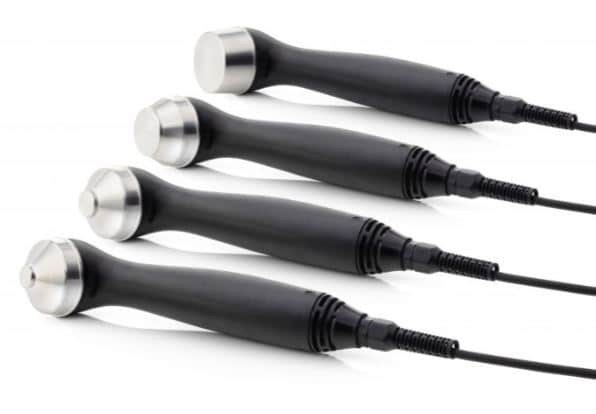

• Ultrasound Applicators: Dual-Frequency, waterproof, and fully submersible heads available in 4 sizes: 1 cm², 2 cm², 5 cm², and 10 cm²
• Patient Contact Detection: Audible signal and LED to ensure optimal contact
• Touchscreen: 7-inch high-resolution display with an intuitive touchscreen interface for treatment settings and viewing, and an anatomical library for applicator positioning
• Memory: A built-in list of suggested protocols based on clinical evidence. 25 additional protocols can be customized and saved. Treatment session recording and history review are available if desired.

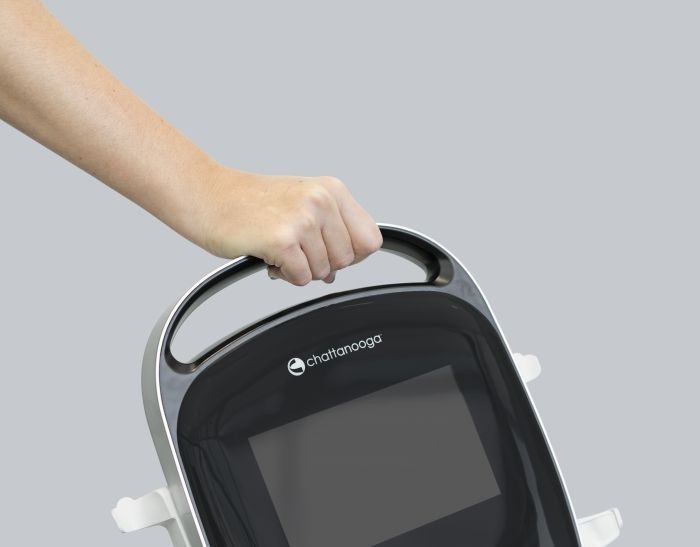

• Mobility: Lightweight (2.8 kg) with an ergonomic handle
  • In-office use: an optional modern design trolley on casters with integrated storage drawers.
  • For home use: a compartmentalized carrying bag and a battery (compliant with IEC 60601-1-11 for home use)

Accessories included

• Mobile Dual-Frequency Ultrasound Head Applicator 2 - 5 cm² (ref: 15-0142)
• Power cord
• USB drive with software and updates

Options:

• Intelect Mobile 2 Dual-Frequency Ultrasound Head Applicator - 1 cm² (ref: 15-0140)
• Intelect Mobile 2 Dual-Frequency Ultrasound Head Applicator - 2 cm² (ref: 15-0141)
• Intelect Mobile 2 Dual-Frequency Ultrasound Head Applicator - 5 cm² (ref: 15-0142)
• Intelect Mobile 2 Dual-Frequency Ultrasound Head Applicator - 10 cm² (ref: 15-0143)
• Battery for Intelect Mobile 2 & Transport 2 (ref: 15-1086)
• Cartridge for Intelect Mobile 2 & Transport 2 (ref: 15-1136)
• Carrying Bag for Intelect Mobile 2 & Transport 2 (ref: 15-3210)

Compliance and Safety

Class IIa medical device with CE marked, compliant with EN/IEC 60601-1 and 60601-1-11 standards.

For use by qualified healthcare professionals only.
